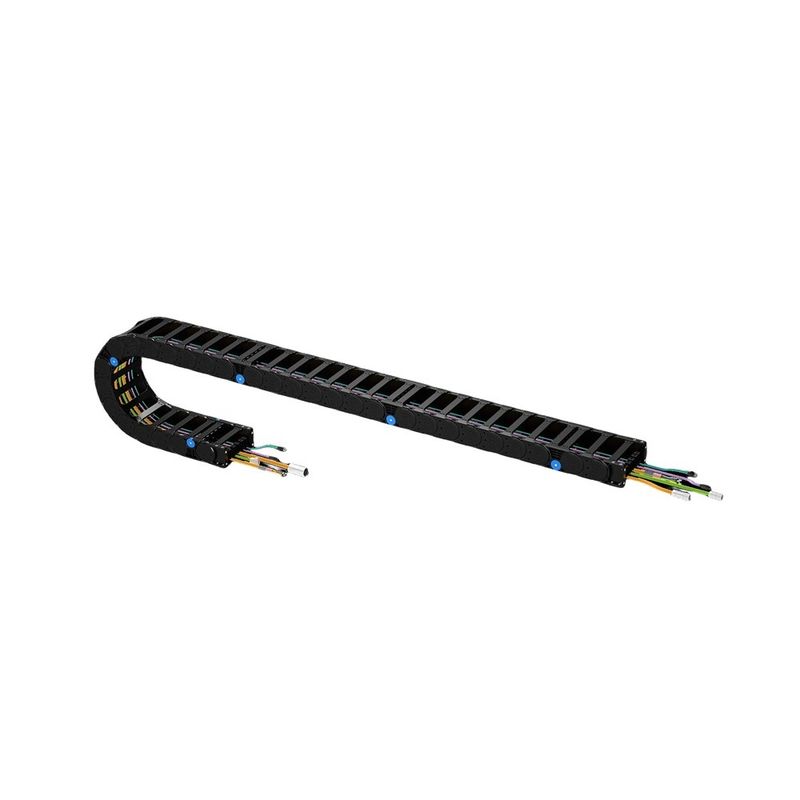

Small Cable Drag Chain Nylon Electrical Drag Chain Durability For CNC Machine

Cable Drag Chains: A Comprehensive Guide to Industrial Cable Management

Introduction: Cable drag chains, widely recognized as cable carriers, are essential components in industrial machinery that facilitate the management and protection of cables, hoses, and tubing. These chains are designed to move in synchronization with the machinery, ensuring that the cables they encase remain safe and functional amidst dynamic conditions.

Classifications of Cable Drag Chains: Cable drag chains are categorized based on material, design, and the nature of their application, each serving specific industrial needs:

1. Material-Based Classification:

   • Steel Cable Drag Chains: Known for their high strength and durability, these chains are ideal for heavy-duty applications where resistance to impact and heavy loads is required.
   • Plastic Cable Drag Chains: Made from materials like polyamide or polyurethane, these chains offer lightweight solutions with good resistance to corrosion and wear.
   • Nylon Cable Drag Chains: These provide a balance of flexibility and wear resistance, suitable for applications that demand frequent bending and movement.

2. Design-Based Classification:

   • Open Design: Features a simple structure that allows for easy installation and better ventilation, with moderate protection against environmental factors.
   • Closed Design: Provides a fully enclosed environment for the cables, offering maximum protection against dust, water, and other contaminants.

3. Application-Based Classification:

   • Standard Duty Chains: Suitable for general use with average load requirements and less severe movement conditions.
   • Heavy Duty Chains: Built to withstand higher loads and more intense mechanical stress, often used in harsh environments.
   • Specialty Chains: May include designs for silent operation, high-speed applications, or specific resistance to environmental factors like high temperatures or chemicals.

Characteristics of Cable Drag Chains:

• Flexibility: Allows for a wide range of motion without restricting the machinery’s functionality.
• Durability: Constructed to last in tough environments, reducing the need for frequent replacements.
• Protection: Shields the enclosed cables from abrasion, impact, and environmental damage.
• Customizability: Available in various sizes, shapes, and materials to fit specific machinery and application requirements.

Applications of Cable Drag Chains: Cable drag chains are used across a spectrum of industries to enhance the safety and efficiency of operations:

• Automotive and Manufacturing: Protecting cables in assembly lines and robotic arms.
• Machine Tools: Safeguarding control cables and hydraulic lines in CNC machines and milling equipment.
• Medical Equipment: Ensuring the safe movement of cables in imaging devices and surgical tools.
• Material Handling Systems: Protecting power and control cables in conveyor belts and automated systems.

Conclusion: Cable drag chains are a vital component in modern industrial operations, providing a reliable means of cable management that enhances both the safety and performance of machinery. Their diverse classifications allow them to be tailored to the specific demands of various environments, ensuring that cables remain protected and functional. As industries continue to evolve, the importance of cable drag chains in maintaining the integrity and efficiency of operations will remain paramount.
